GAIA GC-50,100 & 150

GAIA GC-50,100 & 150

GAIA GC-50,100 & 150

The GAIA GC50,100 & 150 food dryer are our smallest range of automated, electrically powered food waste dryers. Simple and robust these systems over 2 batches per day respectively treat 50kgs, 100kgs or 150kgs. With the output of dried materials being sanitised and odourless and reduced in volume and mass by up to 90%.

These systems can be used to treat:

  • Cooked and uncooked meats and fish
  • Cooked and uncooked fruit and vegetables
  • Liquids & small bones – chicken & Pork
  • Spoilt & Rotten foods
  • Packaged food wastes
  • Other Organic Materials High in Moisture Content

These smaller systems are typically used in applications where space is of a premium, city centre hotels, cafeterias in shopping centres, staff catering facilities

ADVANTAGES

  •  Completely Drying (Processed material: under than 10% of moisture)
  •  No Bad Smell
  •  Easy to Use & Cheap Maintenance
  •  Safety Device Equipped(Emergency Stop Button, Alarm, Buzzer)
  •  Crushing Impeller Embedded
  •  No Additives Required
  •  Portable(By casters : wheels)

TECHNICAL SPECIFICATIONS

GAIA GC-50

  • Length:                                               1050mm
  • Width:                                                750mm
  • Height:                                                   1213mm
  • Capacity:                                  50 kgs in 2 cycles
  • Process time :                                    8 hours
  • Weight:                                                 400 kgs

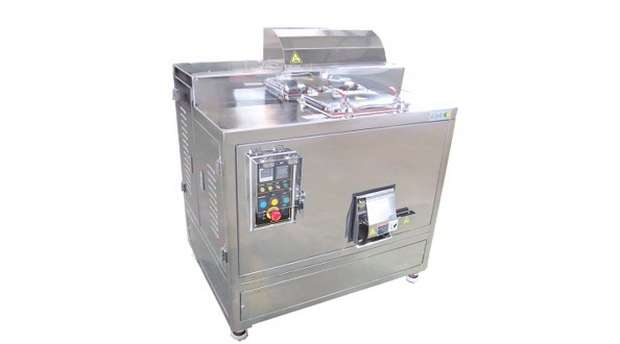

GC-50

GAIA GC-100

  • Length:                                               1400mm
  • Width:                                                950mm
  • Height:                                                   1291mm
  • Capacity:                                  100 kgs in 2 cycles
  • Process time :                                       8 hours
  • Weight:                                                  600 kgs

GC-100(new design)

GAIA GC-150

  • Length:                                               1600mm
  • Width:                                               1000mm
  • Height:                                                   1396mm
  • Capacity:                                  150 kgs in 2 cycles
  • Process time :                                         8 hours
  • Weight:                                                  800 kgs

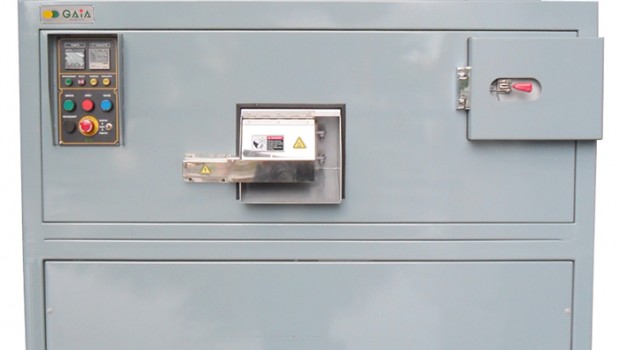

GC-150

https://www.youtube.com/watch?v=SGvyxfWM4nU

https://www.youtube.com/watch?v=nGjlhrYPqP8

https://www.youtube.com/watch?v=diW4X2pu2uQ
