GAIA GC-200,300 & 400

GAIA GC-200,300 & 400

GAIA GC-200,300 & 400

The GAIA GC-200,300 & 400 food dryer are our mid range of automated, electrically powered food waste dryers. Simple and robust these systems over 2 batches per day respectively treat 200kgs, 300kgs or 400kgs. With the output of dried materials being sanitised and odourless and reduced in volume and mass by up to 90%.

These systems can be used to treat:

  • Cooked and uncooked meats and fish
  • Cooked and uncooked fruit and vegetables
  • Liquids & small bones – chicken & Pork
  • Spoilt & Rotten foods
  • Packaged food wastes
  • Other Organic Materials High in Moisture Content

These systems are typically used in applications such as medium sized hotels, colleges, universities, shopping centres, large staff catering facilities or small scale food manufacture

ADVANTAGES

  •  Completely Drying (Processed material: under than 10% of moisture)
  •  No Bad Smell
  •  Easy to Use & Cheap Maintenance
  •  Safety Device Equipped(Emergency Stop Button, Alarm, Buzzer)
  •  Crushing Impeller Embedded
  •  No Additives Required
  •  Portable(By casters : wheels)

TECHNICAL SPECIFICATIONS

GAIA GC-200

  • Length:                                               1700mm
  • Width:                                                1200mm
  • Height:                                                1566mm
  • Capacity:                                   200 kgs in 2 cycles
  • Process time :                                     8 hours
  • Weight:                                                1000 kgs

GC-200

GAIA GC-300

  • Length:                                               1850mm
  • Width:                                                1300mm
  • Height:                                               1600mm
  • Capacity:                                  300 kgs in 2 cycles
  • Process time :                                       8 hours
  • Weight:                                                  1250kgs

GC-300

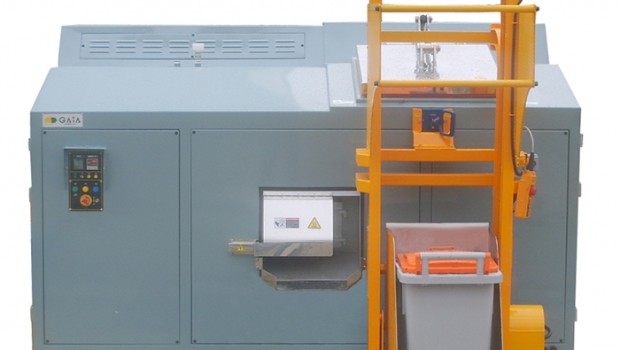

GAIA GC-400

  • Length:                                               2400mm
  • Width:                                                 1500mm
  • Height:                                                1763mm
  • Capacity:                                  400 kgs in 2 cycles
  • Process time :                                    8 hours
  • Weight:                                             2500kgs

GC-400
